Are door handle spindles universal?
Table of Contents
- Are door handle spindles universal?
- Are spindles standard size?
- How do you measure a door handle for a spindle?
- Are all door handles the same size?
- How do split spindles work?
- How do you cut spindles?
- What height are spindles?
- What size do spindles come in?
- What size is a standard door handle?
- How do you determine door handle size?
- What does the spindle on a door handle do?
- What kind of spindle do I need for rim door?
- How big is a standard UK door handle?
- What should the backset be on a door handle?
Are door handle spindles universal?
Are all spindles the same size? A. They can vary but 8mm (5/16") square has become a general "standard" for spindles which are European manufactured although 7mm square can also be seen particularly those imported from Australia or New Zealand. Many British spindles are 7.6mm (19/64") square.
Are spindles standard size?
So, while the nominal size for a rough cut spindle may be 2″ x 2″, for example, the actual size of the finished spindle is a bit smaller. This is because of the milling process. ... Please note that these sizes are an industry standard.
How do you measure a door handle for a spindle?

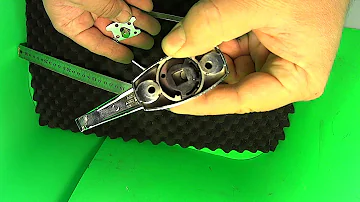

To find the spindle length of your handles measure the bit that sticks out from the back of your handle as shown on the photo to the left.
Are all door handles the same size?
Measuring for Doorknobs Most residential doors are 1 3/8 to 1 3/4 inches thick; commercial doors are usually 1 3/4 inches. ... Standard cross bores measure about 1 inch in diameter. The latch bore can be found on the edge of the door, and its standard size is 2 1/8 inches.
How do split spindles work?
0:093:11How Does a Split Spindle Work By The King's Bay - YouTubeYouTube
How do you cut spindles?
0:122:51How to Cut Spindles - YouTubeYouTube
What height are spindles?
You should fit a handrail at a height between 900mm and 1000mm from the pitch line of the stairs, or the floor for landings. This is approximately 35.4–39 inches. Staircases require at least one handrail: If the stairs are less than 1m wide: provide a handrail on one or both sides.
What size do spindles come in?
Wood spindles sit in a grooved track in both the handrail and base rail. The size of the spindle (32mm or 41mm) will determine the size of this groove. Grooved handrails and base rails come with infill (also known as track or filler) which then sits between your spindles.
What size is a standard door handle?
Measure from the edge of the door to the centre of the door knob or handle. The industry standards are usually either 44mm / 57mm / 82mm / 107mm / 130mm. Ideally you will try and choose the backset measurement that sites the door handle in the middle of the door stile.
How do you determine door handle size?
There are 3 main sizes to take when measuring a door handle. Next is the distance between the centre of the top screw to the centre of the bottom screw. Finally the length of the handle plate, top to bottom.
What does the spindle on a door handle do?
When the levers of your door handles are pressed, the spindle rotates and operates the latch inside the door, allowing the door to open. Q. Are all spindles the same size? A. With the introduction of the European Common Market, 8mm (5/16") square has become the "standard" for spindles. However most british spindles are still 7.6mm (19/64") square.
What kind of spindle do I need for rim door?
As with the drilled and tapped spindle, the pulling force on either handle is safely transmitted to the opposite handle. This is essential with rim furniture as there is no rose fixing to contain this force on the lock side of the door. This type of spindle is slotted at both ends.
How big is a standard UK door handle?
The standard spindle (the bar that connects the handles) size in the UK is 8mm (actually 7.9mm), providing your current locks accept an 8mm bar width spindle, you should not have any problems fitting new handles.
What should the backset be on a door handle?
The backset size on a lock or latch case is the distance from the edge of the door to the centre of where the handle spindle passes through the door (or the key / turn where applicable), this is dimension 'X' below.
